Project Hi-Tech 75-S
Krikis
on 2024-12-29
Basics
- Price per m2: €1,000
- Date added: Added 2 years ago
- Category: Modular house
- Type: Modular, Turnkey
- Bedrooms: 3
- Bathrooms: 1
- Total rooms: 4
- Floors: 1
- Area, m²: 73 m²
Description
-
Description:

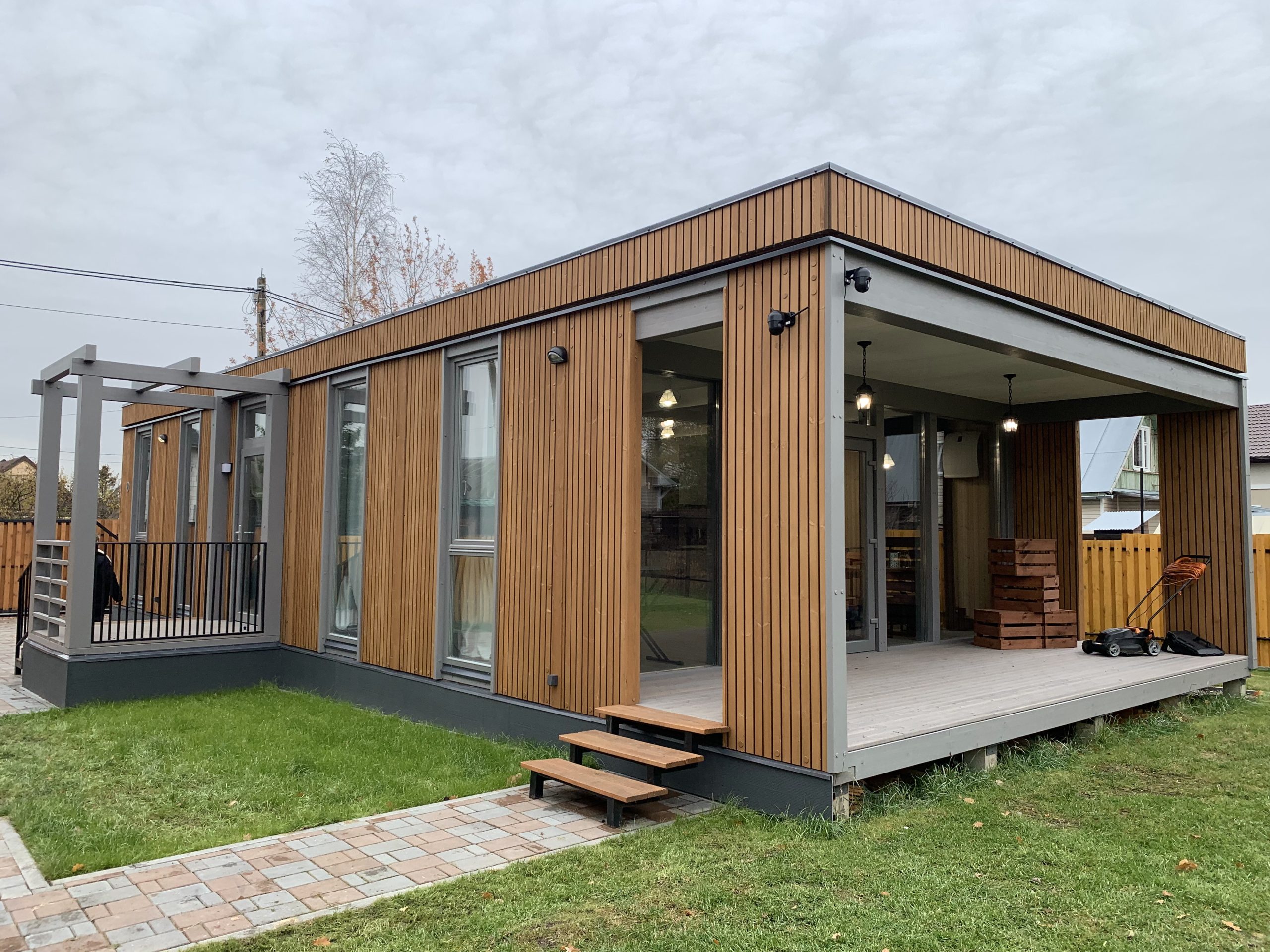

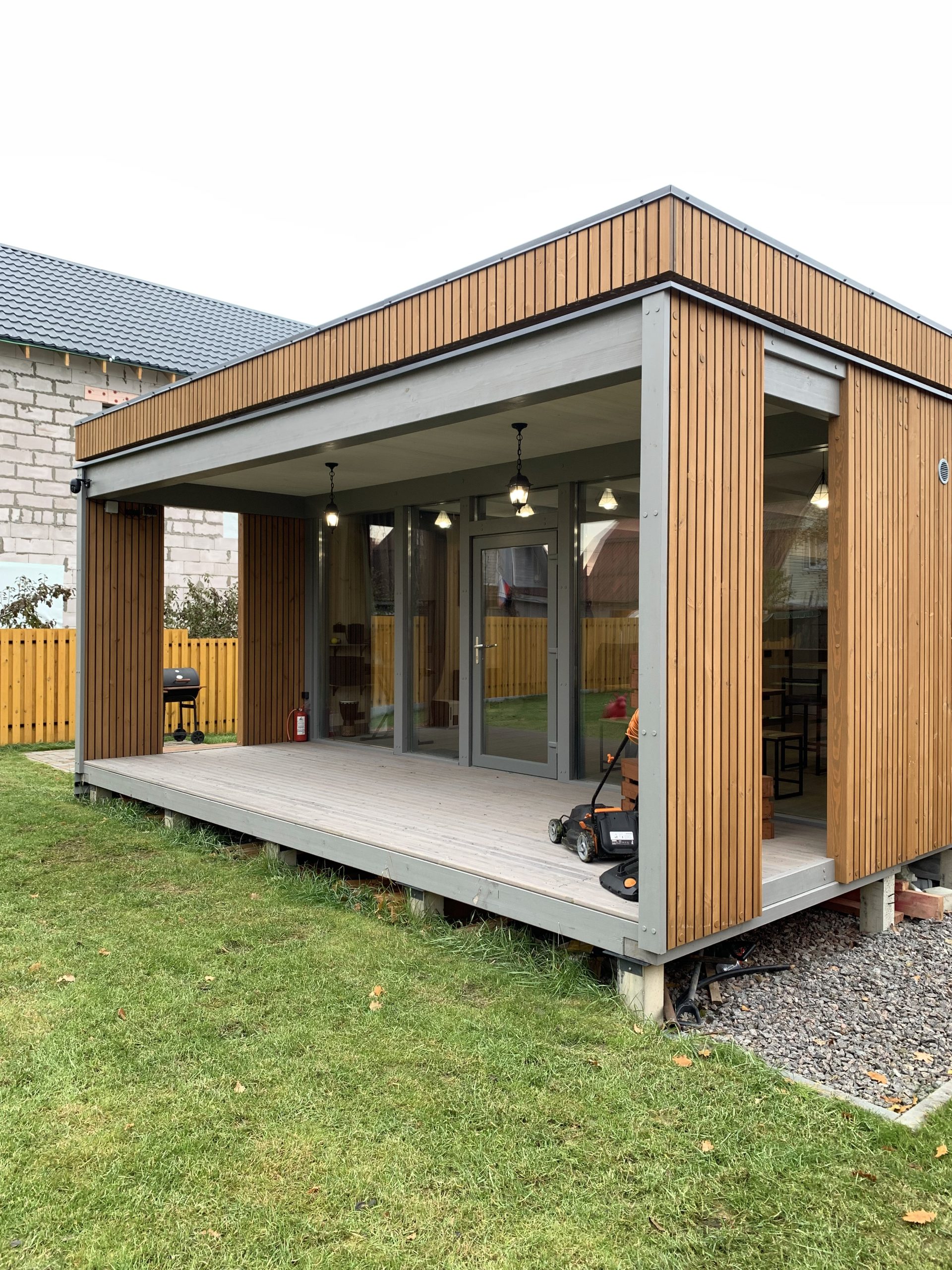

Project Hi-Tech 75-S
Ceiling height 2740 mm
Delivery option 1Modular home designs (for self-assembly on site)- External walls - structural and finishing glued wooden board "CLT-TERMO" 200 mm thick with insulation Beltermo
- Internal walls - structural and finishing glued timber CLT board 100 mm thick
- Floor - Strapping frame made of glued beams and joists - Structural and finishing glued timber board CLT 60 mm thick
- Roof - Glued Ceiling Beams - Structural and finishing glued timber board CLT 100 mm thick
- Elements of a half-timbered frame (beams, pillars)
- Sawing to size of all wooden structures
- Antiseptic treatment of all wooden structures
- Specification of fasteners for installation
Delivery option 2Modular house "turnkey"- External walls - structural and finishing glued wooden board "CLT-TERMO" 200 mm thick with insulation Beltermo
- Internal walls - structural and finishing glued timber CLT board 100 mm thick
- Floor - Strapping frame made of glued beams and joists - Structural and finishing glued timber board CLT 60 mm thick
- Roof - Glued Ceiling Beams - Structural and finishing glued timber board CLT 100 mm thick
- Elements of a half-timbered frame (beams, pillars)
- Sawing to size of all wooden structures
- Antiseptic treatment of all wooden structures
- Specification of fasteners for installation
- Foundation (reinforced concrete piles 3 m)
- Painting of all walls, beams, floors and ceilings
- Assembly of modules at the factory and installation on site
- Floor insulation - 120 mm PIR + metal mesh against rodents
- Roof insulation - extruded polystyrene foam
- Roofing material - PVC membrane
- Wooden windows insulated with double-chamber energy-saving glass unit (tilt and turn)

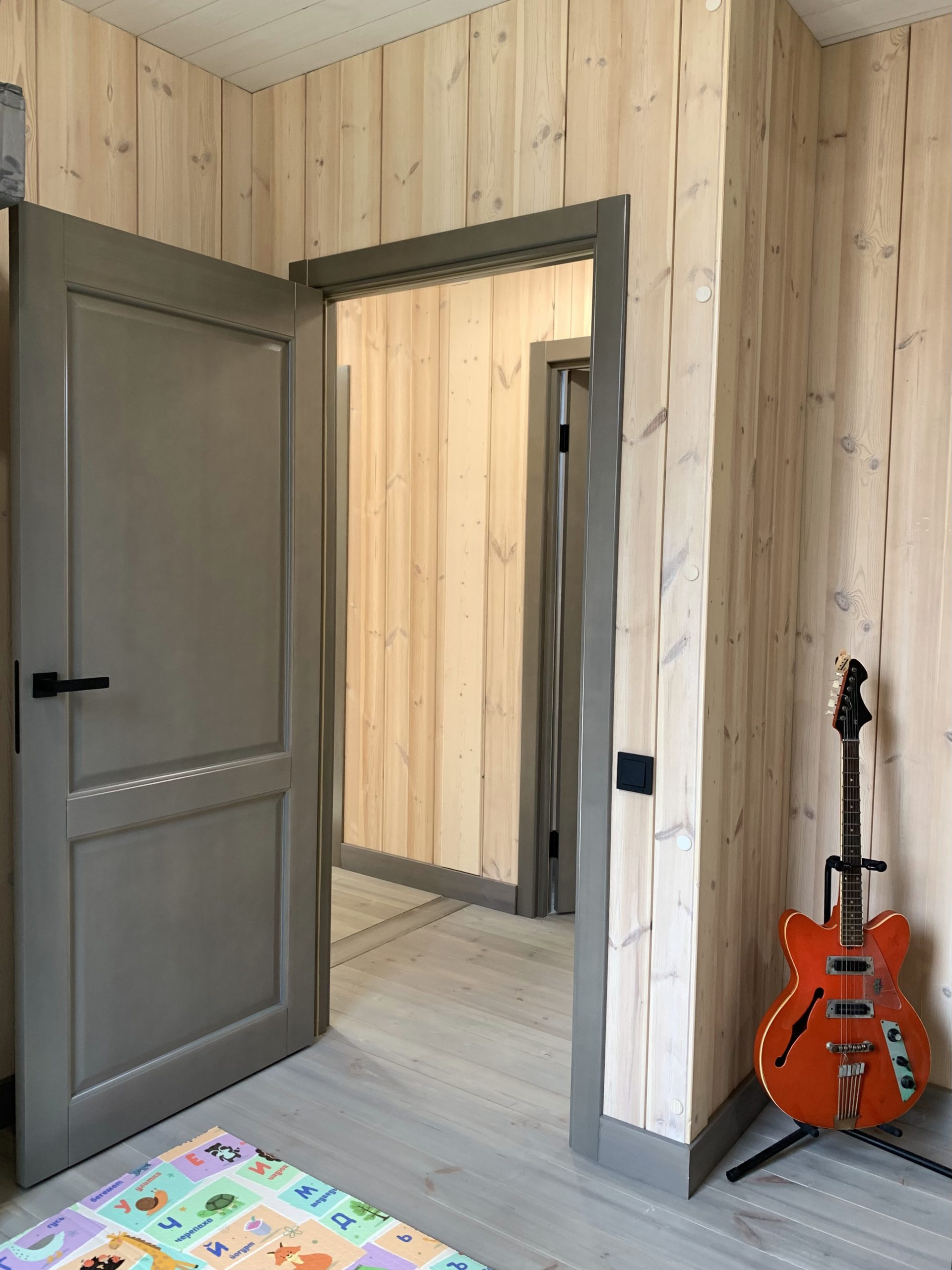

- Doors - External doors insulated with double-chamber energy-saving glass unit - Interior doors made of solid pine or MDF (optional)
- Porch area
- Electrics (electrical panel, circuit breakers, RCD, VVGng cable, sockets, switches)

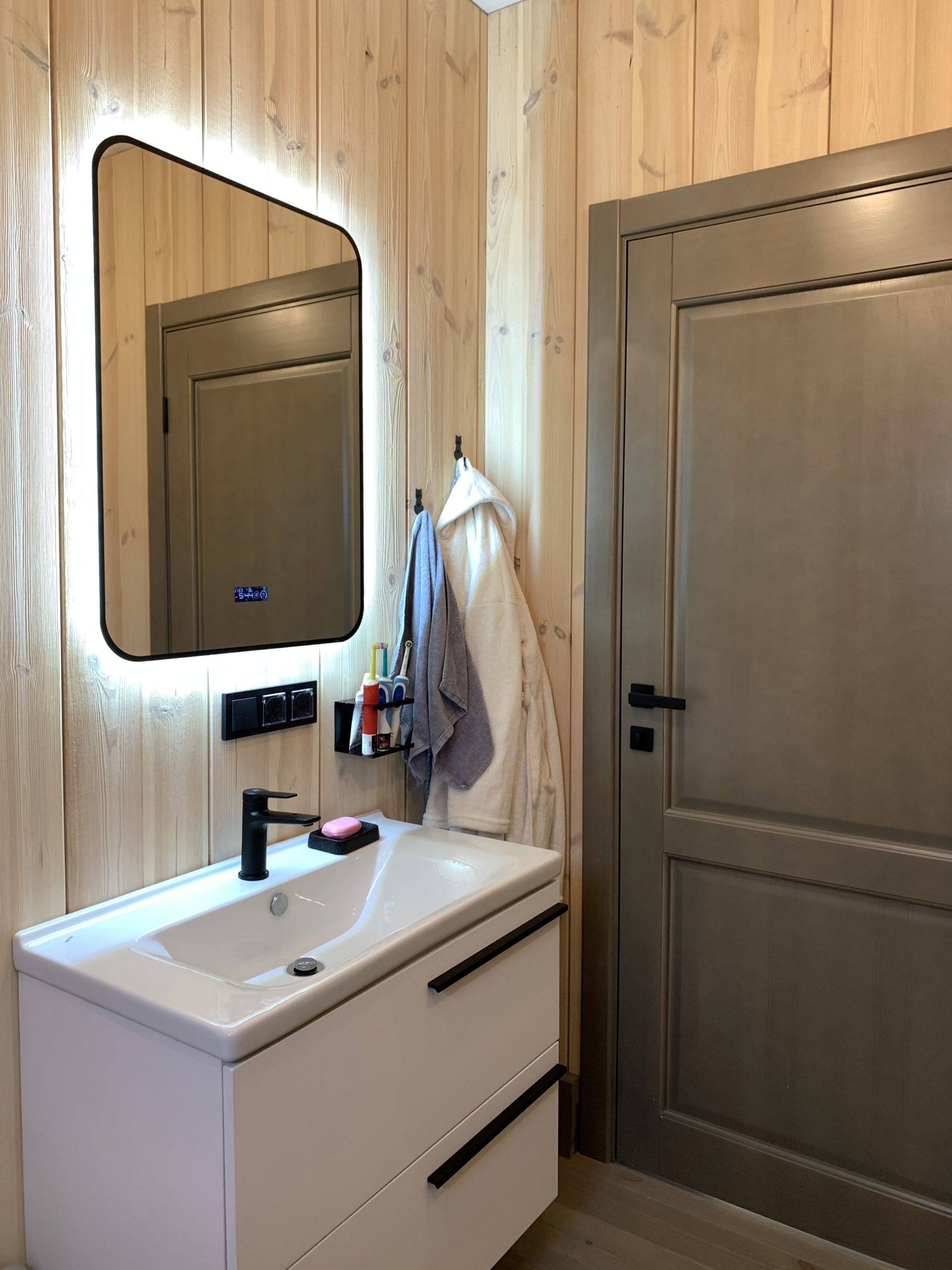

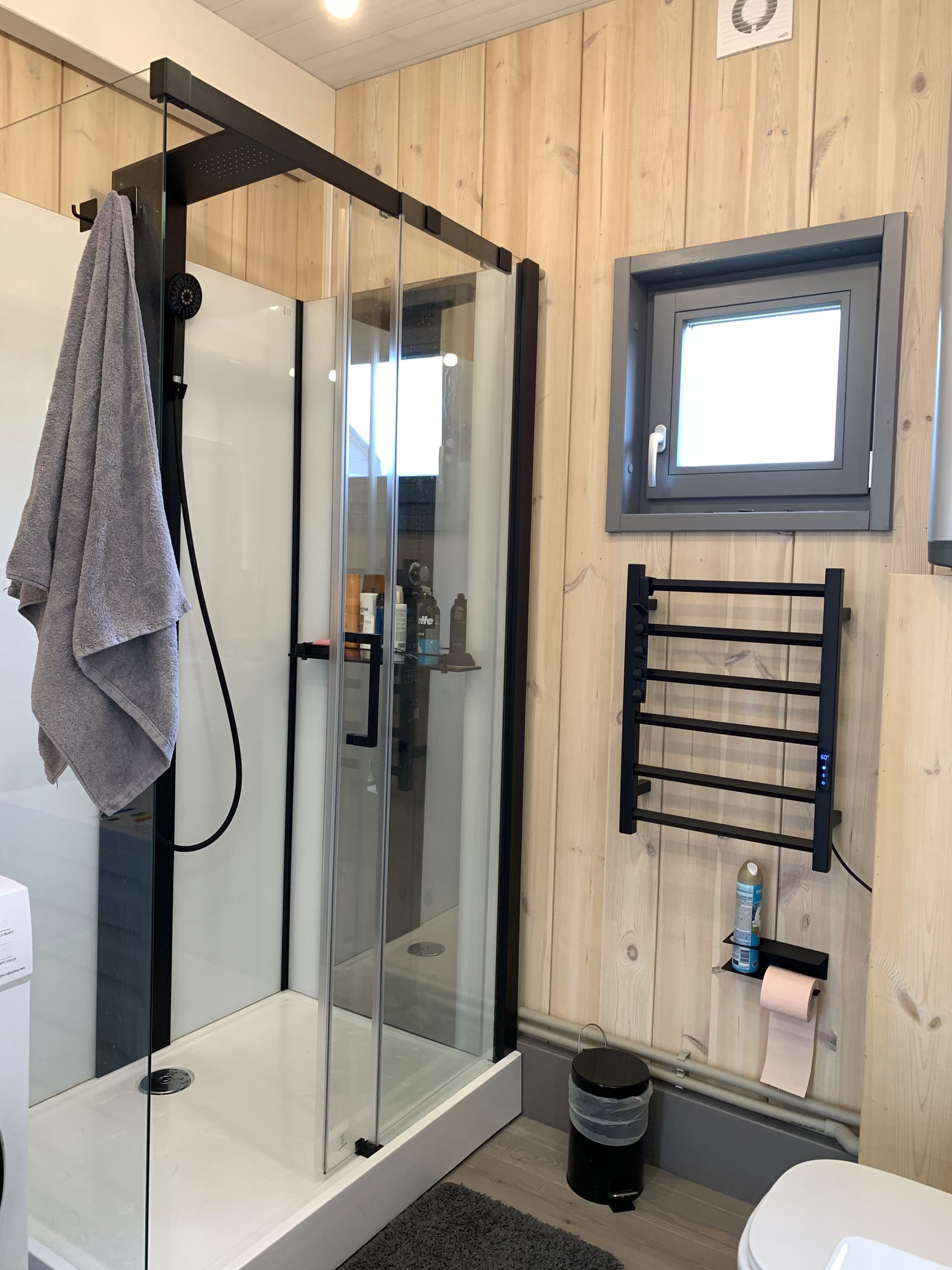

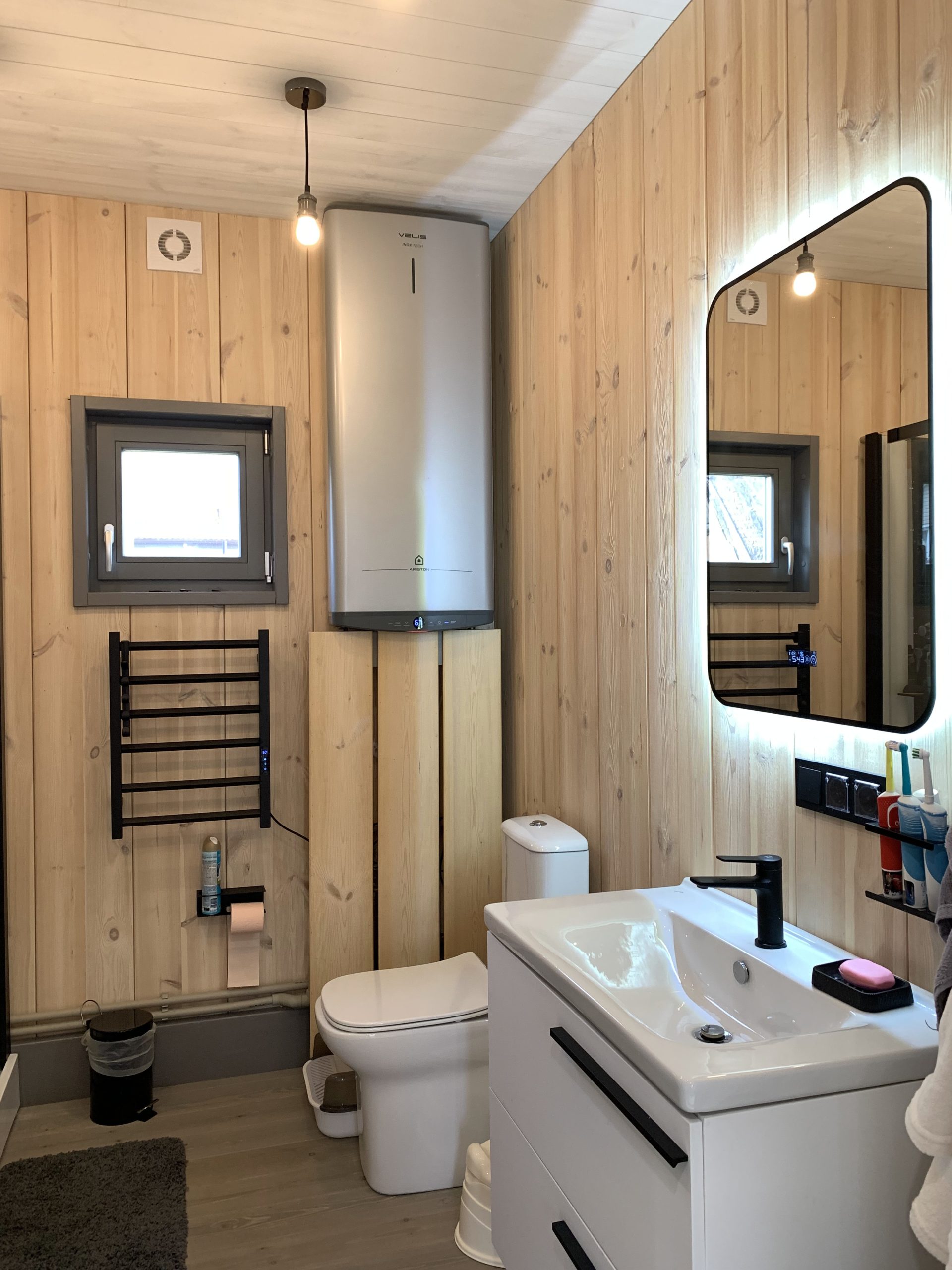

- Plumbing (cold and hot water supply, toilet, cabinet, sink, mixer and shower cabin - all brand Am.Pm)
Additional costs and options
Covered and open terraces, canopy over the porch area, connection of external utility networks to the house, delivery, lifting mechanisms during installation (crane, manipulator), heating (convectors, stove-fireplace).
