Hi-tech 90-2FL

Krikis on 2024-12-29
Modular houseModularTurnkeyHi-tech 90-2FL
() () () () () () () () () () () () () () () file file

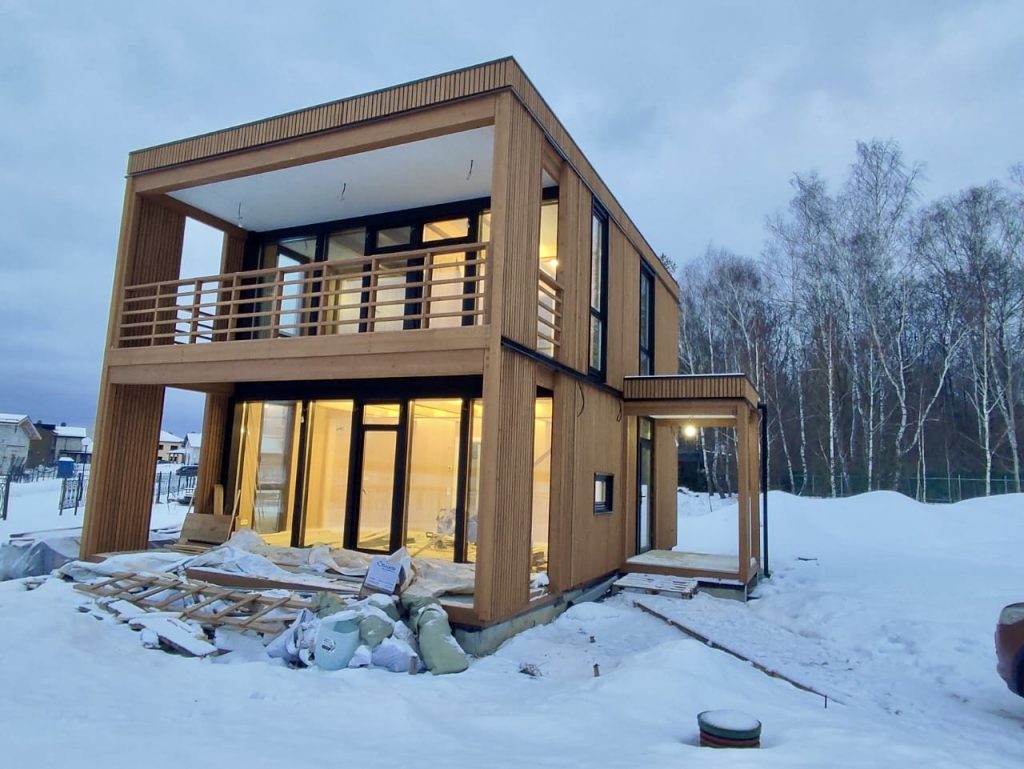

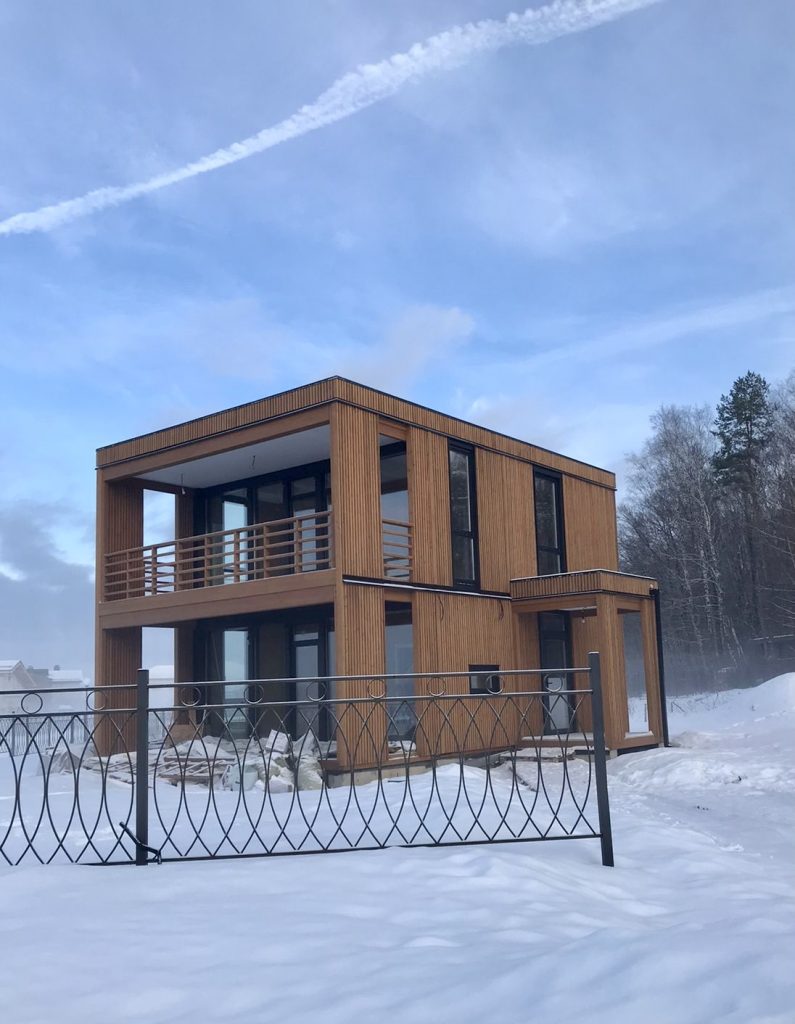

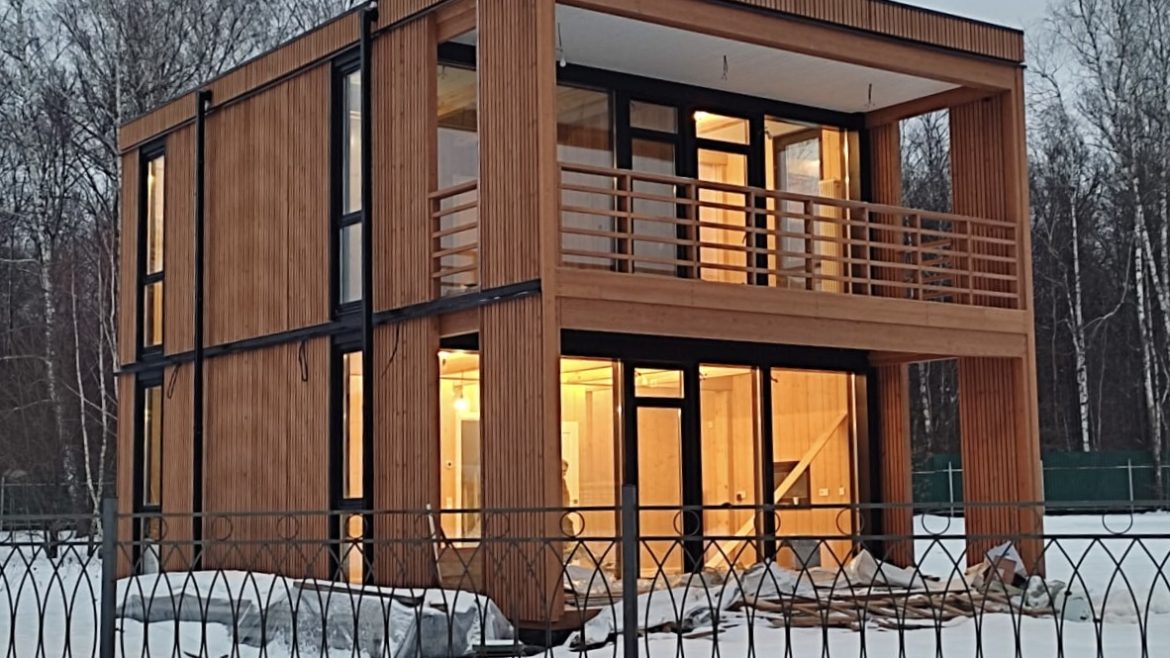

Hi-tech 90-2FL

  • 4 beds
  • 1 bath
  • 85 m²
€1,000per m2
Request info

Share this home

Copy

Or share with

Basics

  • Price per m2: €1,000
  • Date added: Added 2 years ago
  • Category:
  • Type: ,
  • Bedrooms: 4
  • Bathrooms: 1
  • Total rooms: 4
  • Floors: 2
  • Area, m²: 85 m²

Description

  • Description:

    Hi-tech 90-2FL

    The height of the ceilings of the first and second floors is 2740 mm

    Delivery option 1
    Modular home designs (for self-assembly on site)
    1. External walls - structural and finishing glued wooden board "CLT-TERMO" 200 mm thick with insulation Beltermo
    2. Internal walls - structural and finishing glued timber CLT board 100 mm thick
    3. Floor - Strapping frame made of glued beams and joists - Structural and finishing glued timber board CLT 60 mm thick
    4. Interfloor overlap - Glued laminated beams - Structural and finishing glued timber CLT board 100 mm thick  (ceiling of the 1st floor)
    5. Structural and finishing glued timber CLT board 60 mm thick  (2nd floor floor)
    6. Roof - Glued Ceiling Beams - Structural and finishing glued timber board CLT 100 mm thick
    7. Elements of a half-timbered frame (beams, pillars)
    8. Sawing to size of all wooden structures
    9. Antiseptic treatment of all wooden structures
    10. Specification of fasteners for installation
    Delivery option 2
    Modular house "turnkey"
    1. External walls - structural and finishing glued wooden board "CLT-TERMO" 200 mm thick with insulation Beltermo
    2. Internal walls - structural and finishing glued timber CLT board 100 mm thick
    3. Floor - Strapping frame made of glued beams and joists - Structural and finishing glued timber board CLT 60 mm thick
    4. Interfloor overlap - Glued laminated beams - Structural and finishing glued timber CLT board 100 mm thick  (ceiling of the 1st floor)
    5. Structural and finishing glued timber CLT board 60 mm thick  (2nd floor floor)
    6. Roof - Glued Ceiling Beams - Structural and finishing glued timber board CLT 100 mm thick
    7. Elements of a half-timbered frame (beams, pillars)
    8. Sawing to size of all wooden structures
    9. Antiseptic treatment of all wooden structures
    10. Specification of fasteners for installation
    11. Foundation (reinforced concrete piles 3 m)
    12. Painting of all walls, beams, floors and ceilings
    13. Assembly of modules at the factory and installation on site
    14. Floor insulation - 120 mm PIR + metal mesh against rodents
    15. Roof insulation - extruded polystyrene foam
    16. Roofing material - PVC membrane
    17. Wooden windows insulated with double-chamber energy-saving glass unit (tilt and turn)
    18. Doors - External doors insulated with double-chamber energy-saving glass unit - Interior doors made of solid pine or MDF (optional)

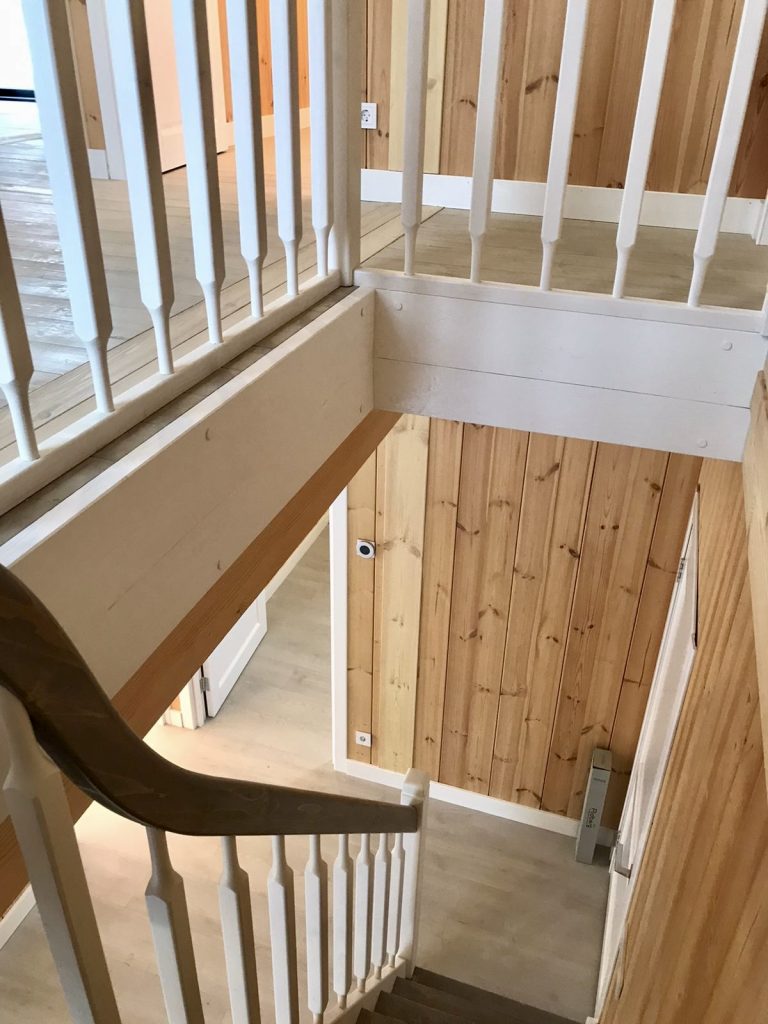

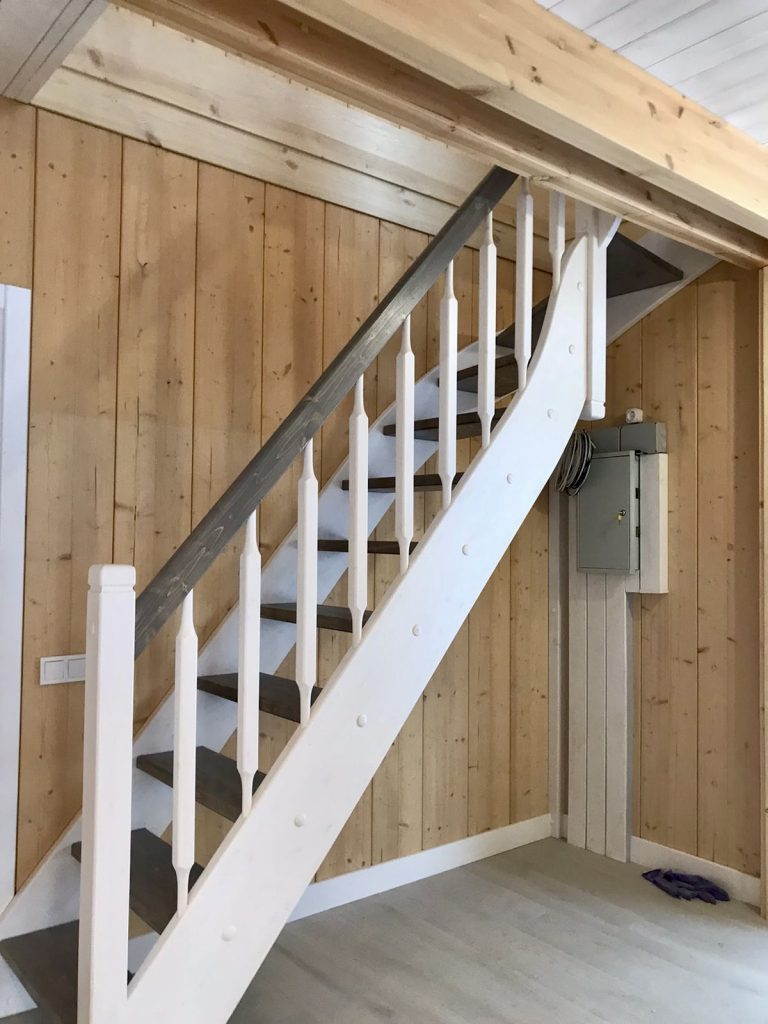

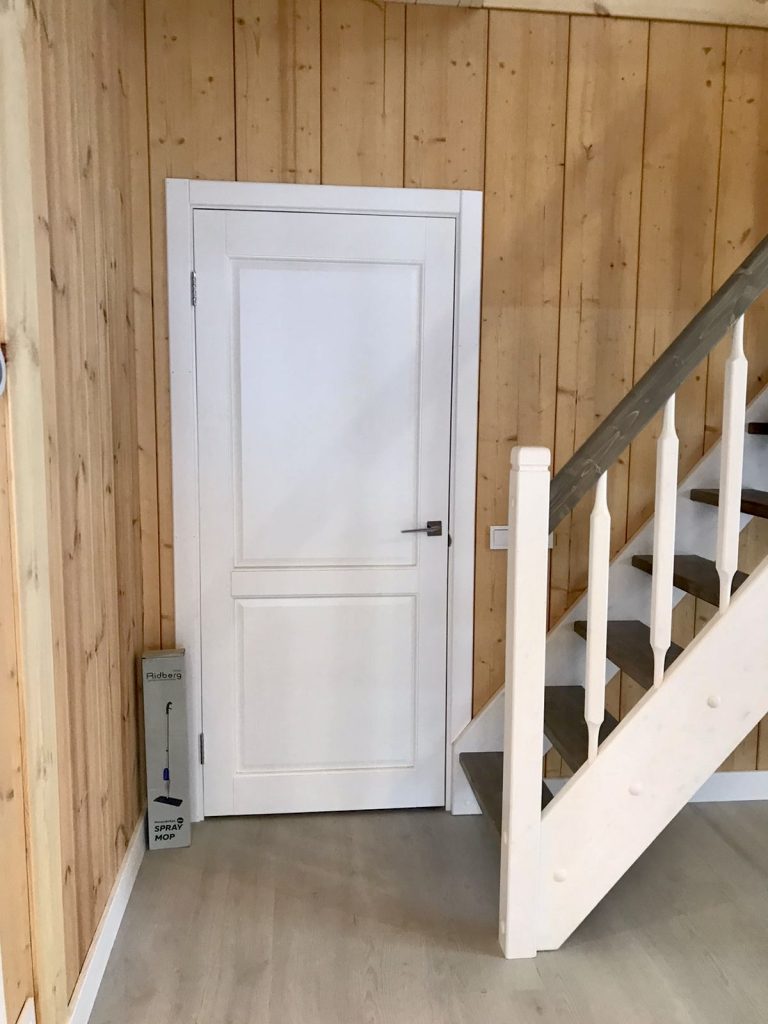

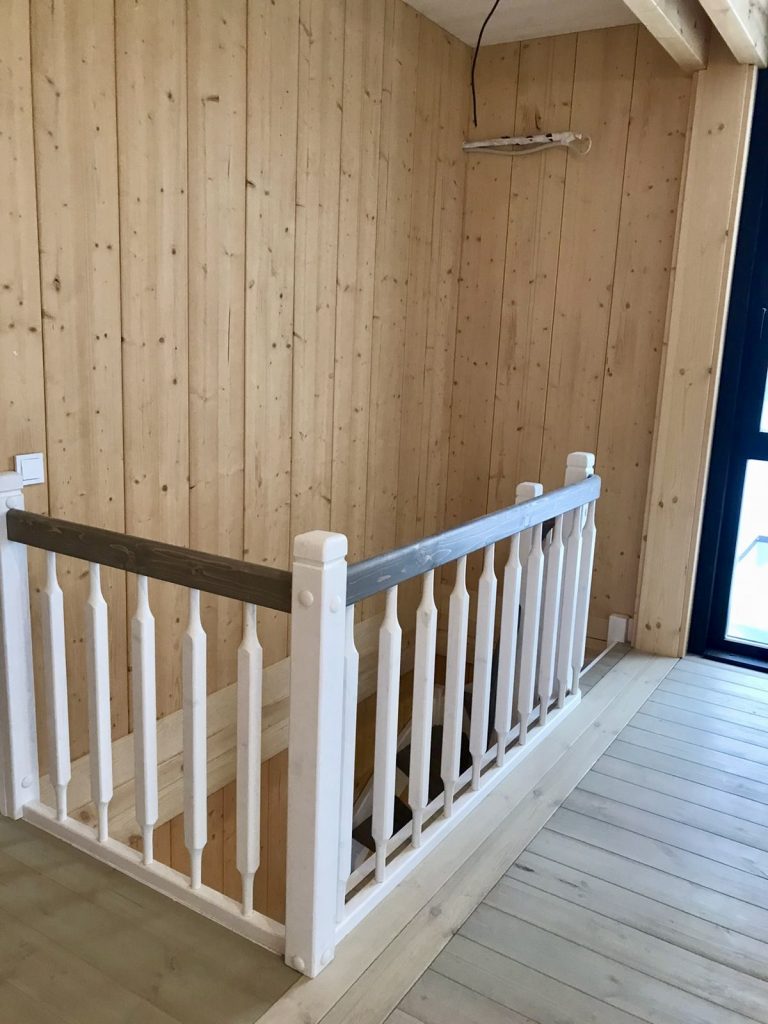

    19. Ladder
    20. Porch area
    21. Electrics (electrical panel, circuit breakers, RCD, VVGng cable, sockets, switches)
    22. Plumbing (cold and hot water supply, toilet, cabinet, sink, mixer and shower cabin - all brand Am.Pm)

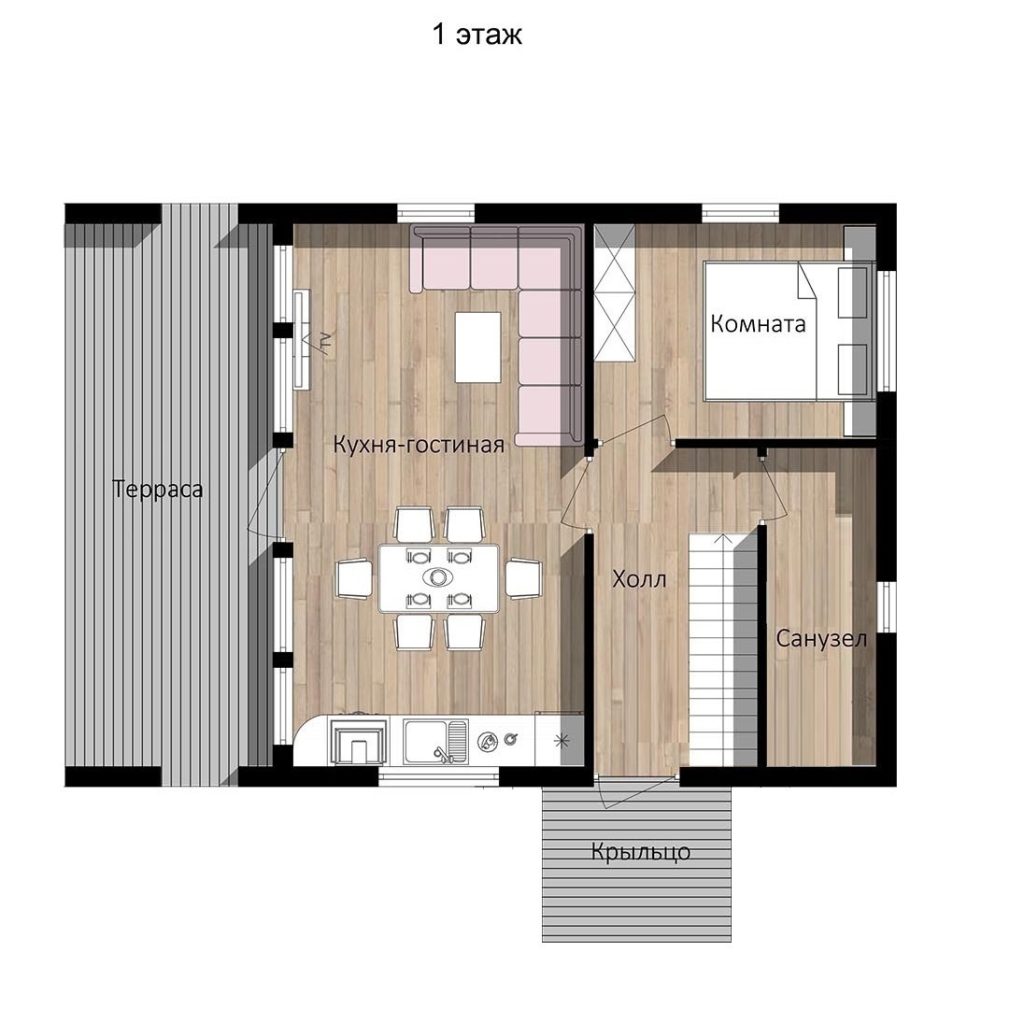

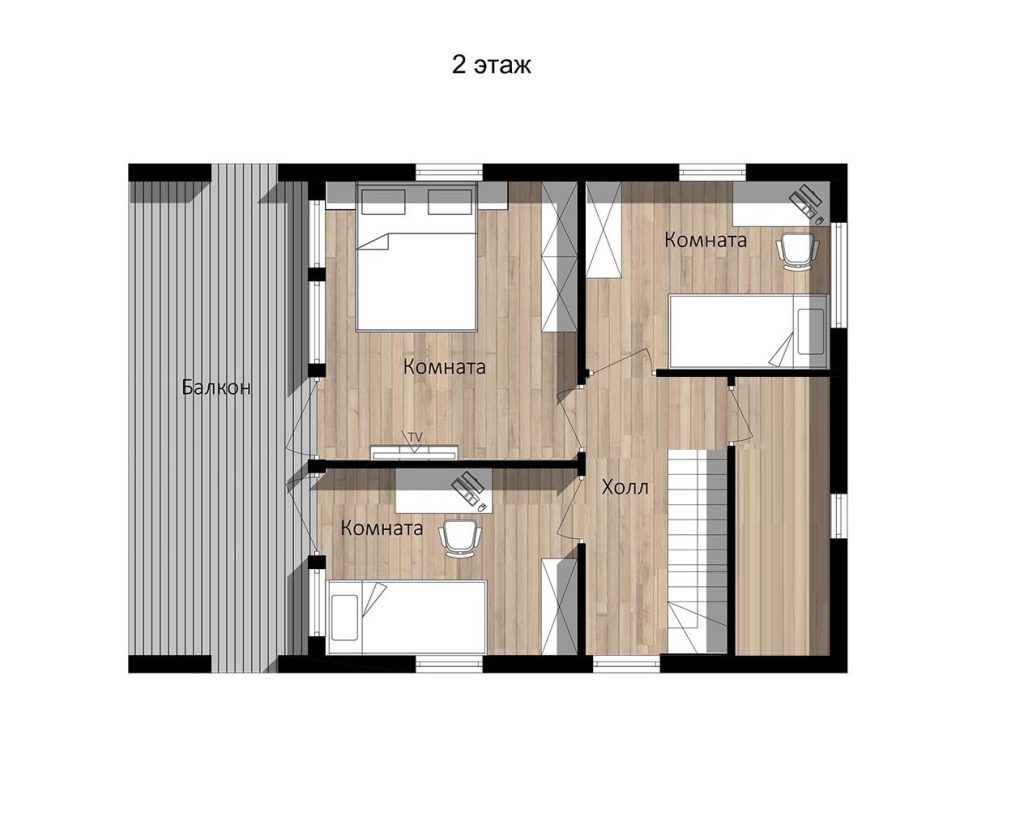

Floor Plans
